Winnerwell® Nomad PLUS Double View External Air Wood Burning Tent Stove – Medium Size

SKU:

$699.95

$1 of your purchase goes to charity of your choice with i=Change®

Overview

U.S., EU & China Invention Patents

Japan Utility Model Patent

Other International Utility Model Patents

Transform your tent into a cozy wilderness retreat with the Winnerwell® Nomad PLUS Double View External Air Wood Burning Tent Stove. Engineered for extreme cold – weather camping, this stove combines innovative dual – window visibility with an external air intake system, delivering efficient heat while minimizing smoke inside your shelter.”

With it’s unique patented design of External Air intake from outside the tent, Winnerwell® Nomad PLUS Double View External Air Wood Burning Tent Stove brings a new standard of heating efficiency to portable wood burning stoves. Unlike the front door air intake, an inbuilt external air supply to the External Air intake stove ensures that there’s an unlimited flow of fresh combustion air, which eliminates cold drafts, prevents the stove from consuming the air in tent and the hot air it has created.

A typical stove can consume between 10 to 20 cubic meters of combustion air every hour and an average airtight 4-person tent has a volume of air around 30 to 40 cubic meters, so it’s obvious that a stove operating in an airtight and draught-proof tent could quickly consume up the Oxygen in the tent within 2.5 hours and thus present serious problems for the occupants.

The secondary combustion system helps burn off waste gases to produce more heat and reduce emissions.

Category:

Description

Innovative · Safe · Efficient – A New-Generation Camping Stove Solution

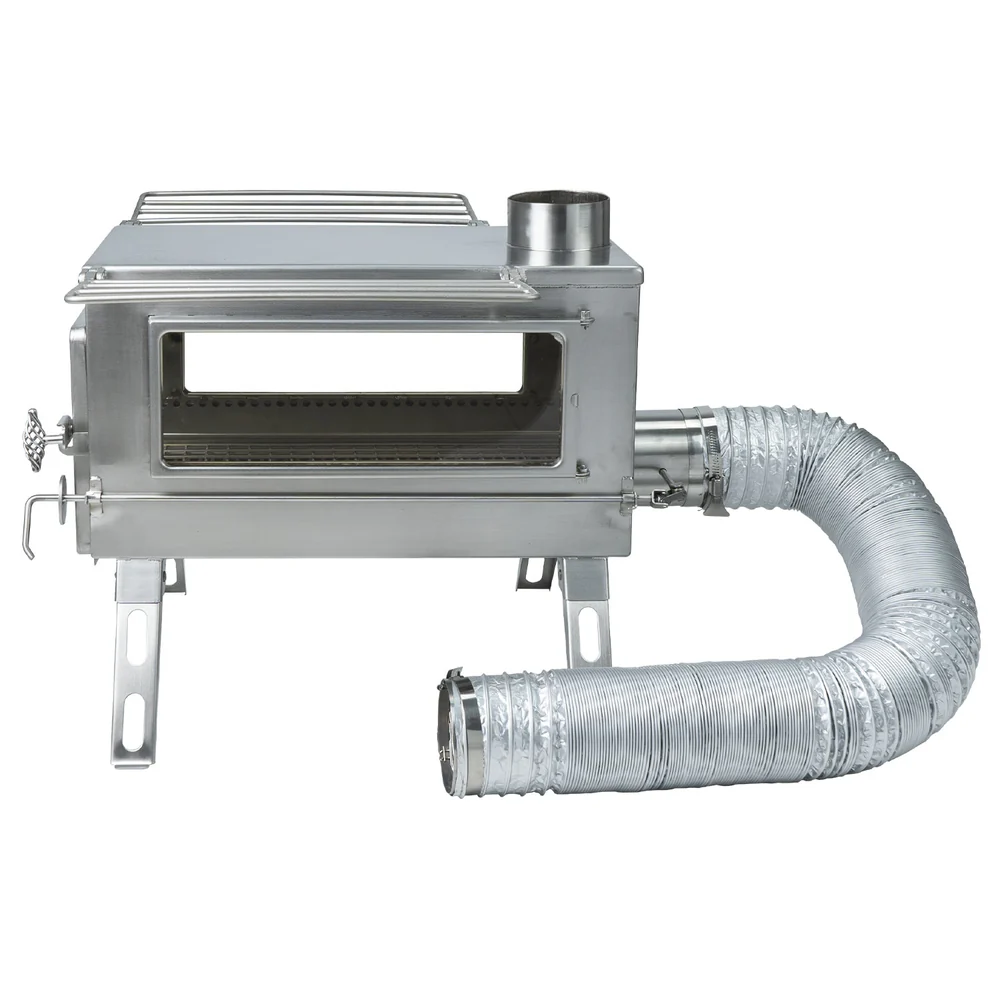

The Winnerwell® External Air Supply series is purpose-built for hot tent camping, offering a safer and more efficient heating experience. Unlike traditional stoves that rely on air inside the tent for combustion, this series features an independent external air intake system that draws fresh air from outside the tent directly into the stove chamber.

External Air Design | Breathe Nature, Block Risk
● Supplies fresh air from outside to avoid depleting oxygen inside the tent
● Prevents cold air from backdrafting into the tent, keeping the interior warm
● Enhances combustion efficiency, making the most of your fuel
● Minimizes smoke and stuffiness, creating a cleaner and fresher indoor atmosphere

✅ Important Note: If you plan to use a stove inside a tent, make sure to choose one with an external air supply system. Traditional stoves that draw air from the tent interior can cause oxygen depletion and pose serious risks such as carbon monoxide poisoning. Winnerwell® offers the only truly independent external air supply systems on the market—designed with your safety and comfort in mind.

With continuous innovation in design and performance, Winnerwell® delivers a stove solution that makes overnight camping in cold conditions truly safe and comfortable.

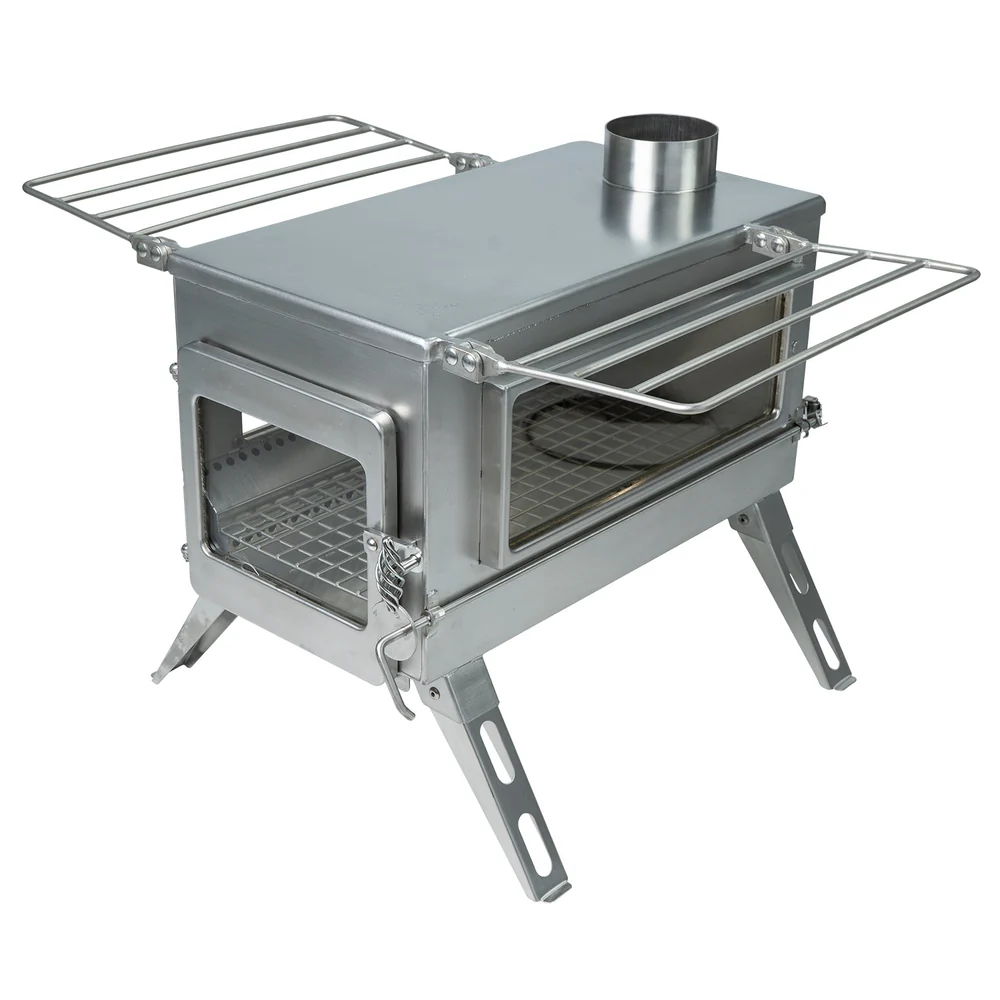

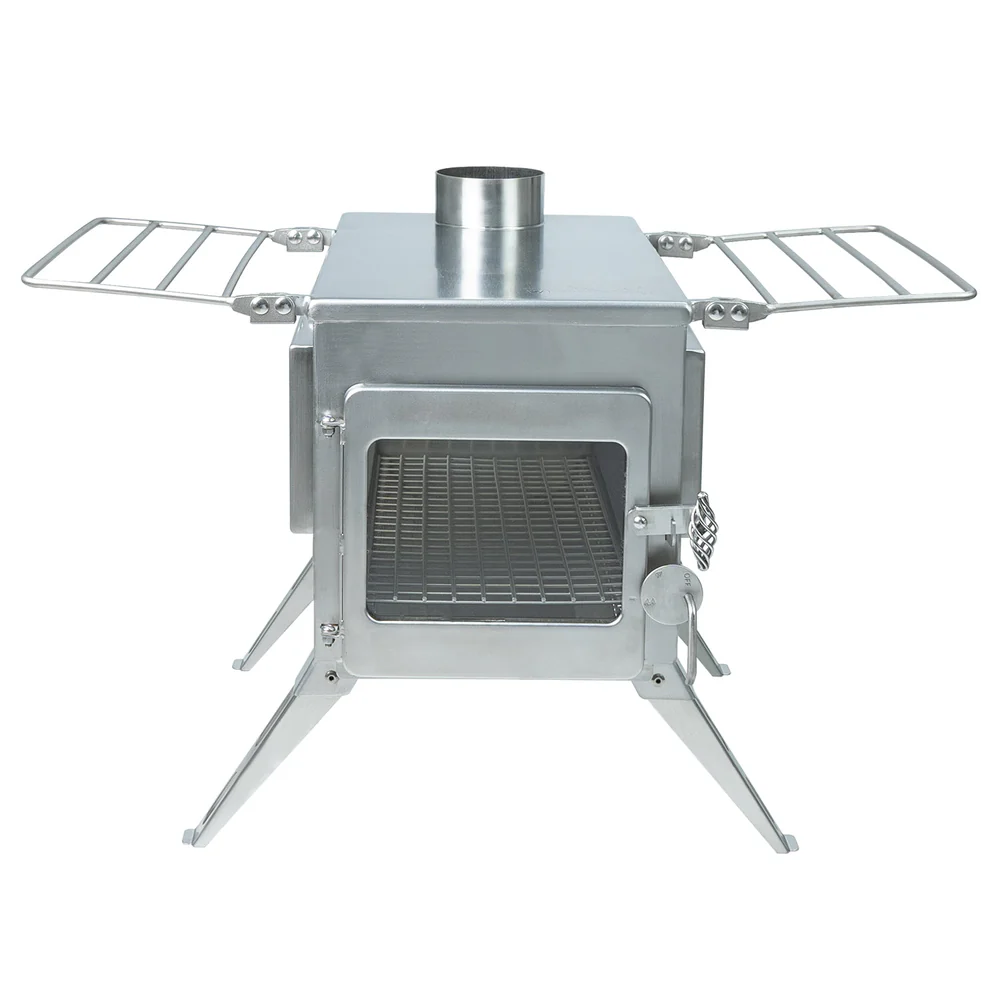

Winnerwell® Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove
SKU: 910257
Material: AISI304 Stainless Steel
Model: WN-PVM
Firebox Dimension: 360(L)mm×200(W)mm×210(H)mm / 14.2(L)in×7.8(W)in×8.3(H)in
Stowed Dimension: 510(L)mm×265(W)mm×300(H)mm / 20.1(L)in×10.4(W)in×11.8(H)in
Assembly Dimension: 510(L)mm×526(W)mm×2120(H)mm / 20.1(L)in×20.7(W)in×83.5(H)in
Pipe Diameter: 76mm / 3in + 73mm / 2.9in
Net Weight: approx. 11.8kg / 25.9lbs

————————————————————————

Winnerwell® Nomad PLUS Double View External Air L-sized Wood Burning Tent Stove
SKU: 910256
Material: AISI304 Stainless Steel
Model: WN-PL
Firebox Dimension: 440(L)mm x 250(W)mm x 250(H)mm / 17.3(L)in x 9.8(W)in x 9.8(H)in
Stowed Dimension: 600(L)mm x 315(W)mm x 325(H)mm / 23.6(L)in x 12.4(W)in x 12.8(H)in
Assembly Dimension: 600(L)mm x 645(W)mm x 2615(H)mm / 23.6(L)in x 25.4(W)in x 103(H)in
Pipe Diameter: 89mm / 3.5in + 85mm / 3.3in
Spark Arrestor: 89(D)mmx316(H)mm / 3.5(D)inx12.4(H)in
Total Pipe Length: 2230mm / 87.8in
Net Weight: 17.8kg / 39.2lbs

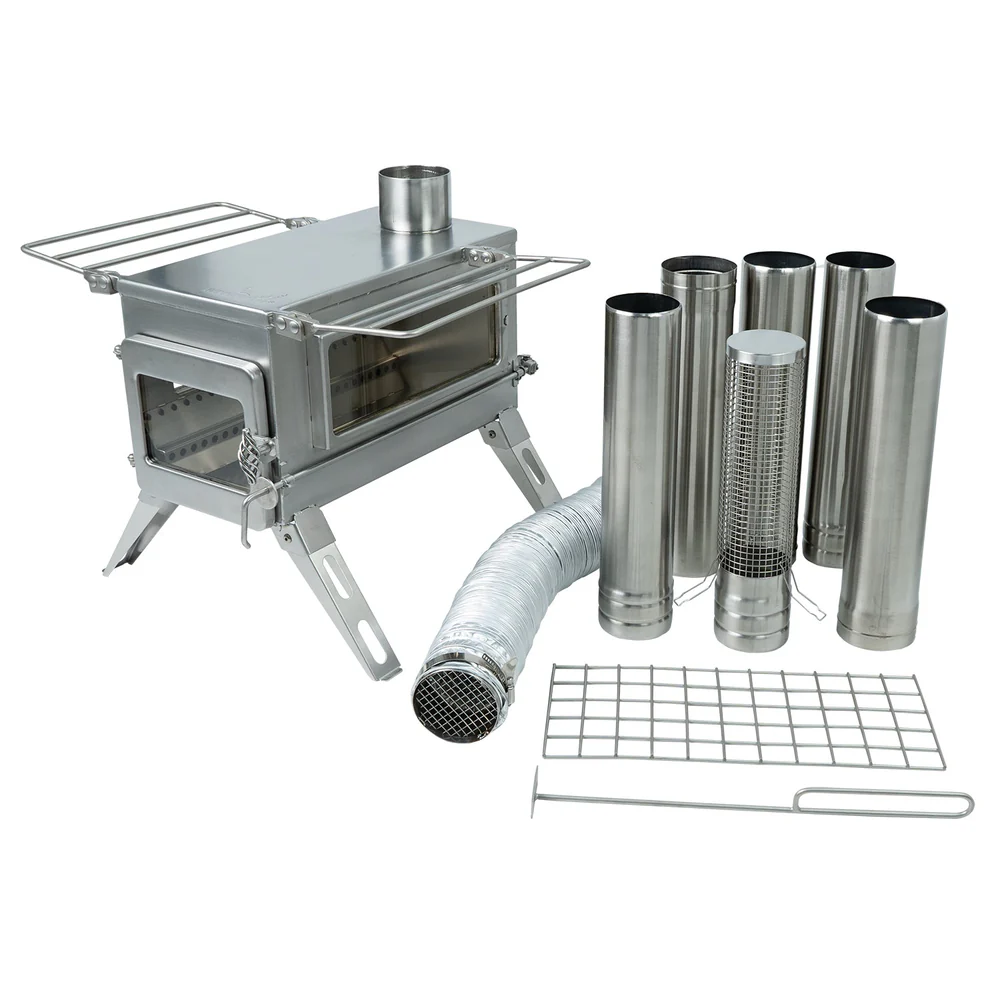

Winnerwell® Nomad PLUS Double View External Air M-sized Wood Burning Tent Stove

1x Stove Body

3x Chimney Pipes (φ76mm)

2x Chimney Pipe (φ73mm)

1x Spark Arrestor

1x Grate

1x Ash Scraper

1x External Air Intake Pipe



Winnerwell® Nomad PLUS Double View External Air L-sized Wood Burning Tent Stove

1x Stove Body

4x Chimney Pipes (φ89mm)

1x Chimney Pipe (φ85mm)

1x Spark Arrestor

1x Grate

1x Ash Scraper

1x External Air Intake Pipe

Always maintain adequate clearances when using a wood stove in a tent or shelter. We recommend at least 18-inches between the stove and any combustible material. When using a non-combustible heat shield or fireproof hearth, clearances can be reduced by half. We strongly recommend the use of a Triple Wall Pipe Section and a Flashing Kit where the flue exits the tent or shelter. Always ensure the flue exits through a fireproof stove jack and the combustible materials are kept clear of the stove or flue. Whenever possible, secure the legs of the stove using tent stakes, bolts, or other adequate anchors to prevent the stove from tipping over.

Never leave a wood stove burning unattended. The surface of Winnerwell® Wood Stoves become extremely hot during use, always wear leather gloves and exercise caution when operating the wood stove. Careful supervision of children and pets is mandatory when operating the wood stove to prevent harm or injury. When children or pets are present, we strongly recommend the use of fence panels or a stove guard to prevent unintentional contact with the stove. Only burn clean, dry, seasoned firewood in Winnerwell® Wood Stoves. Burning green wood can result in carbon monoxide which is hazardous to health as well as increase the build up of creosote in the flue pipe which can create the risk of chimney fire. Clean the flue regularly (approx. every 20 hours of burn time) to avoid excessive creosote build up which can inhibit airflow and create the risk of chimney fire. We recommend a Winnerwell® Pipe Brush for cleaning the flue. User assumes responsibility for the safe use of this wood stove.
