Description

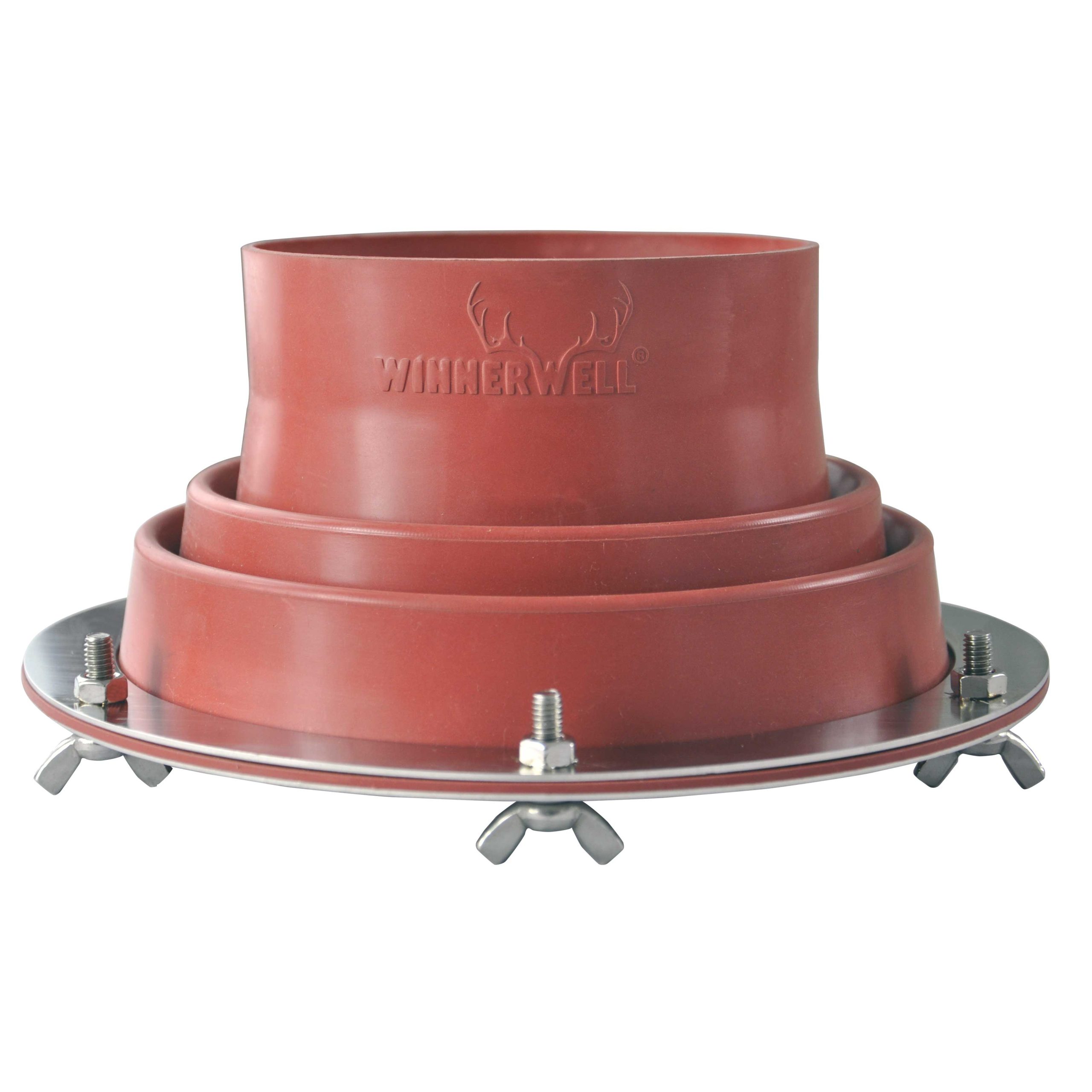

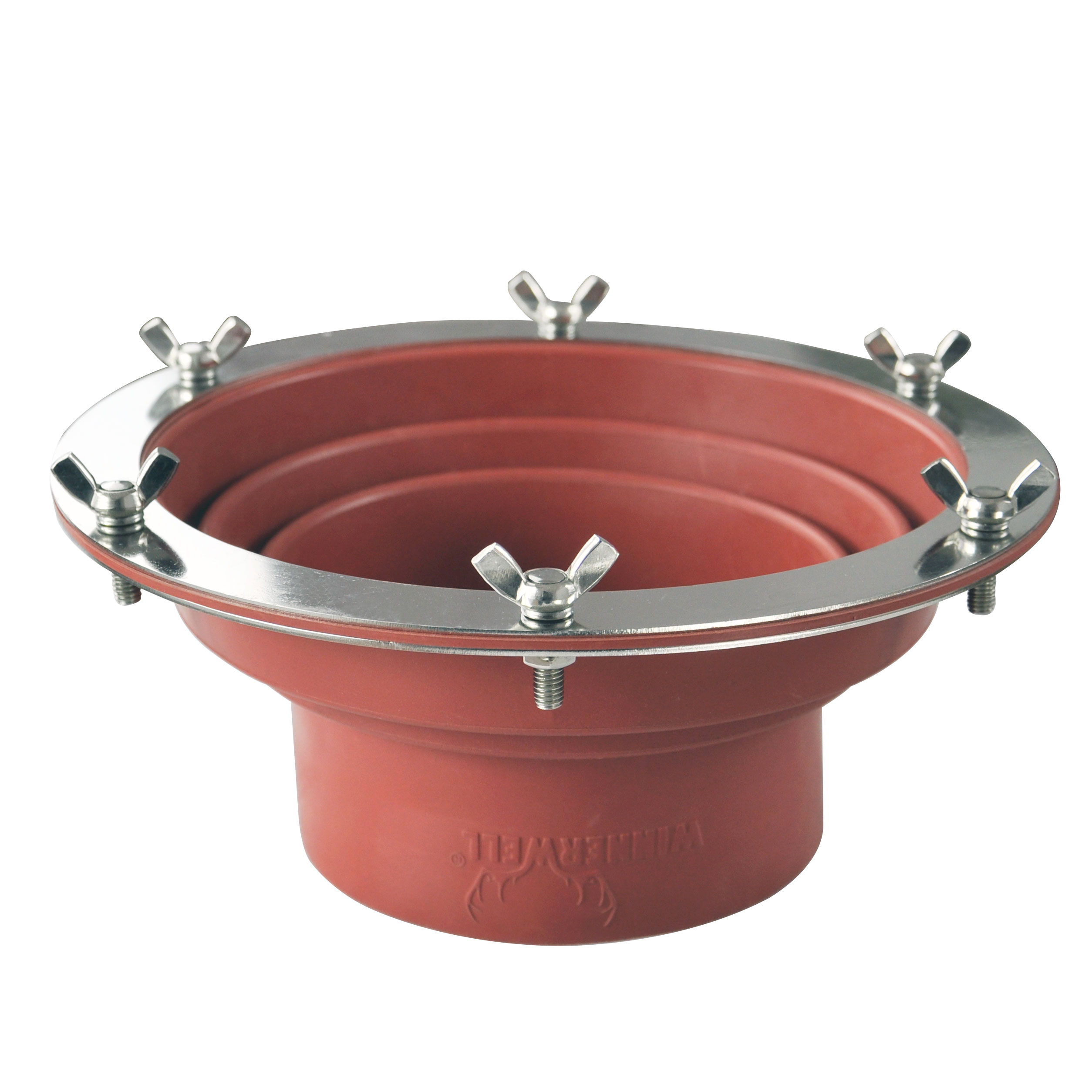

Winnerwell® Flashing Kit        Patented Design

Designed to fit perfectly with the Winnerwell® Triple-wall Heat Protector Chimney 2.1″, Winnerwell® Triple-wall Heat Protector Chimney 2.5″ and Winnerwell® Heat Protector Chimney G2 3.5′‘, the Winnerwell® Flashing Kit is made from silicone which resists the temperature of 240℃ and is held in place by stainless steel rings with six wing nuts. This Flashing Kit can be used to create a weather-tight seal on existing stove jacks or when installing a stove jack in a tent or shelter.

WARNING: The Flashing Kit must be used with Winnerwell® Triple-wall Heat Protector Chimney 2.1″, Winnerwell® Triple-wall Heat Protector Chimney 2.5″ or Winnerwell® Heat Protector Chimney G2 3.5”. There is a risk of melting if install the Flashing Kit on stove pipe directly.

Features
● Compatible with Winnerwell® Triple-wall Heat Protector Chimney 2.1″, Winnewell® Triple-wall Heat Protector Chimney 2.5″ and Winnerwell® Heat Protector Chimney G2 3.5”
● Made with silicone to resist high temperatures, creates a tight seal around the pipe, and provides flexibility
● Stainless steel rings and 6 wing nuts hold the Flashing Kit in place
● Use with existing stove jacks or when installing a stove jack in a tent or shelter

Specification
Material: Silicone collar + Stainless steel rings
Inner Diameter: 122mm / 4.8in
Outer Diameter: 220mm / 8.7in
Height: 92mm / 3.6in
Net Weight: 0.53kg / 1.17lbs

Winnerwell® Flashing Kit must be installed at the position below the 5th row of the holes of the Winnerwell® Heat Protector Chimney. If there’s an installation angle, please must make sure that any position of the Silicone part of the Winnerwell® Flashing Kit must below the 5th row of these holes as well. We recommend to purchase Winnerwell® Short Pipes separately for height adjustment to meet the above specified position requirement.

WARNING: Temperature at the top part of the Heat Protector Chimney is high, the Silicone part must avoid the position of the upper cooling holes.
