8m Protech Double Door Bell Tent



$1 of your purchase goes to charity of your choice with i=Change®


NEW for April 2023! Introducing the largest Sibley Bell Tent ever made: The Sibley 800 ProTech Double Door! The 800 is as big as a large studio apartment or 16 sheets of plywood, measuring 8m (26ft 3in) in diameter with 47m² (506 ft²) of floor space. The dual A-frame doors with 200cm (6.5 ft) clearance provide no-duck access and unobstructed views in two directions. Designed for 4 season use in a variety of environments, the ProTech is equipped with both canvas and mesh doors, windows, and walls – all of which can be neatly tied back when not in use. The waterproof bathtub style floor can be unzipped and separated from the canvas canopy for cleaning, transport, or storage. Made of our signature 4 season waterproof PRO Canvas (360 gr/m² or 10.62 oz/yd²). The 800 ProTech Double Door is the NEW pinnacle of space, performance, and luxury in camping tents

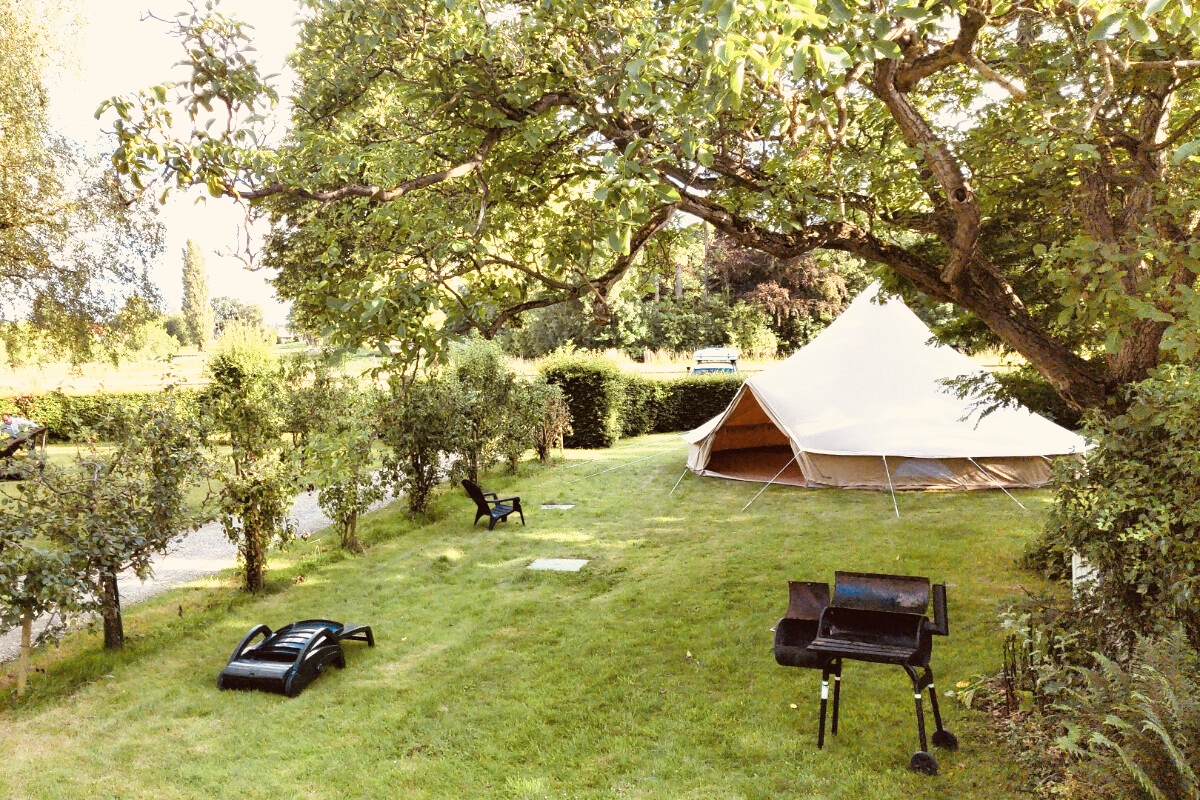

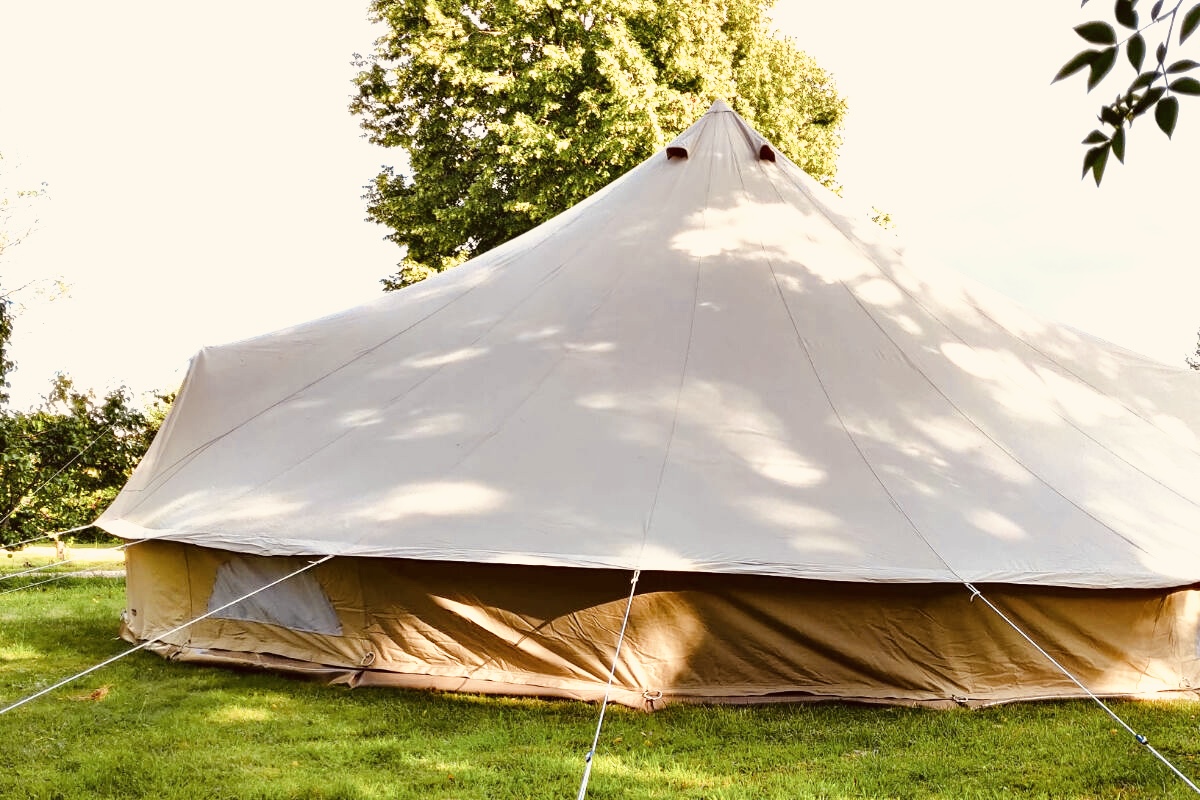

The 800 is a massive canvas tent, measuring 8m (26ft 3in) in diameter with 47m² (506 ft²) of floor space. The 800 comfortably accommodates everything and everyone. The ample floor space, high ceilings, and dual A-frame doors provide endless possibilities for both ultra-luxury glamping configurations with a full suite of furniture, as well as high-capacity group camping applications.

All of our ProTech’s are fully loaded with features for ease of use and adaptability in a range of climates. Exceptionally breathable, our PRO canvas (360 gr/m² or 10.62 oz/yd²) is impregnated with water, mold, and UV resistance. The water and vapor impenetrable groundsheet is now ultra-heavy duty with rip-stop technology (650 gr/m² or 19.17 oz/yd²). 360° mesh walls for ventilation and bug protection can be neatly stored or removed completely when not in use.

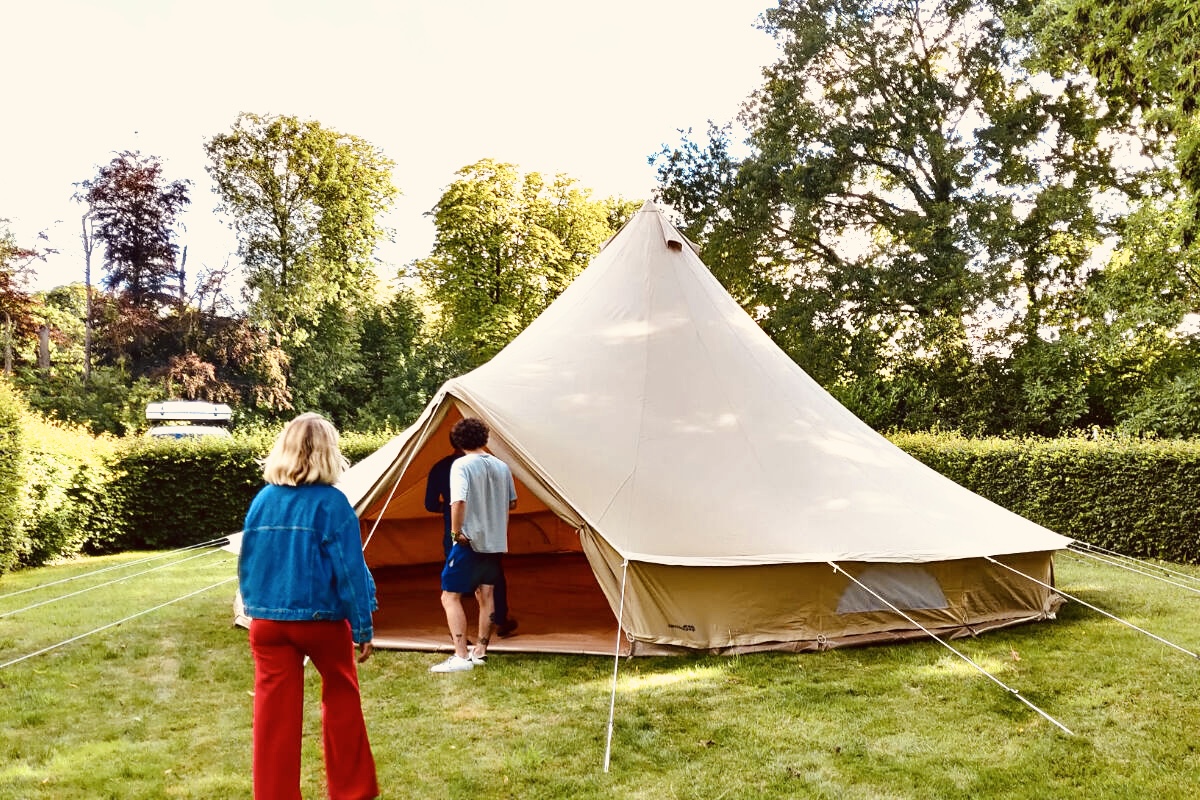

double door bell tent Dual A-frame Doors

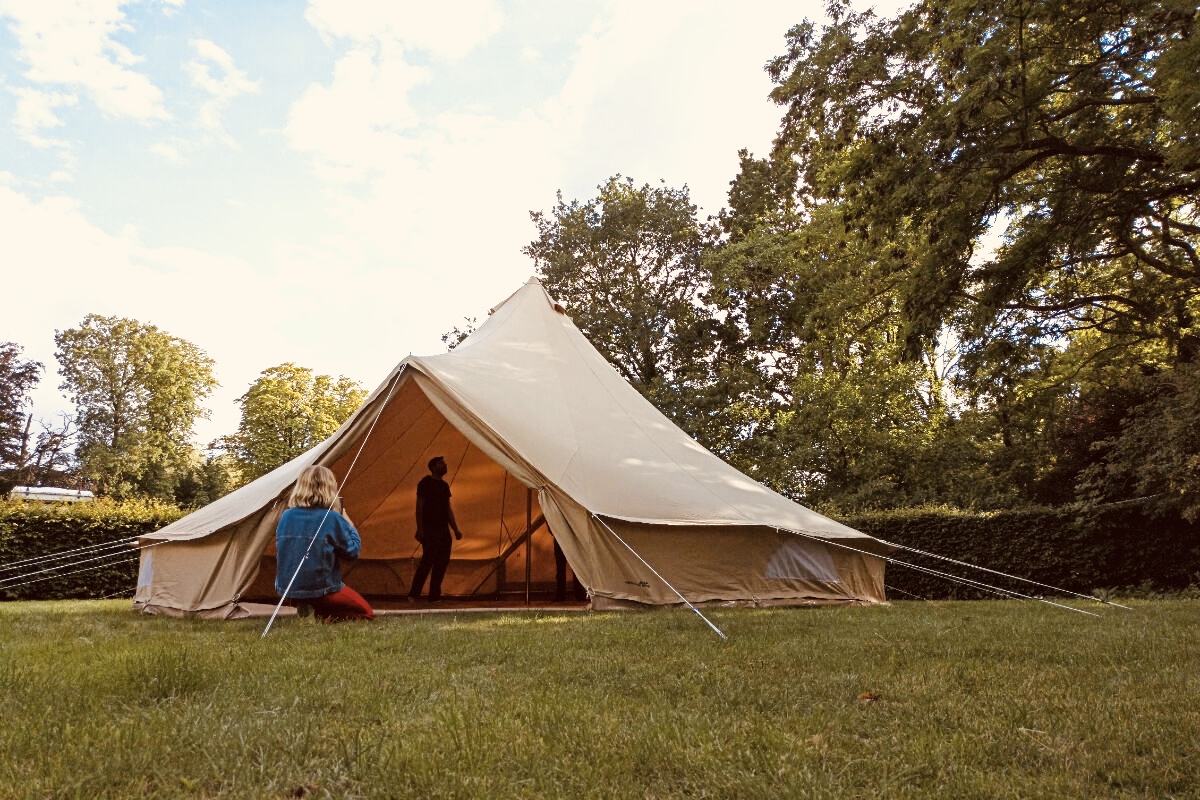

The two A-frame doors on opposite sides of the 800 provide no-duck access with 200cm (6.5 ft) of clearance. Twin doors allow larger groups or families to enter or exit the tent from either side without disturbing the other half. Dueling doors make both the “front yard” and “back yard” of the tent accessible and inviting. Providing unobstructed views in two directions, the 800 Double Door photographs beautifully inside and out.

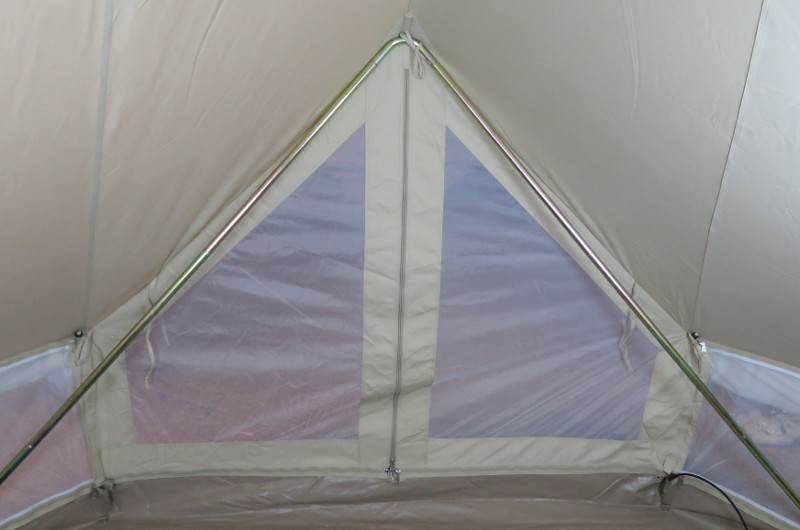

The Sibley’s signature A-frame door allows for easy entry and exit, and holds the canvas at 90 degrees from the ground preventing rain from falling into the tent when moving in and out. The floor is equipped with four stirrups which hold the poles of the doors securely in place. The top of the A-frame doors are equipped with a pin that sits in a grommet at the peak of the door ensuring proper placement. A rain cap is then placed over the pin and grommet to keep rain from running down the poles. The canvas door zips together vertically and along the bathtub floor. Each side of the door is equipped with loops and ropes to neatly tie back the canvas and/or mesh doors to hold them open when not in use.

Every Sibley is compatible with a Sibley Connector, a bow-tie shaped attachment that can be used as an awning. A Sibley Connector can also be used as a covered bridge between one of the Double Doors and a second bell tent, allowing you to create a multiple room tent.

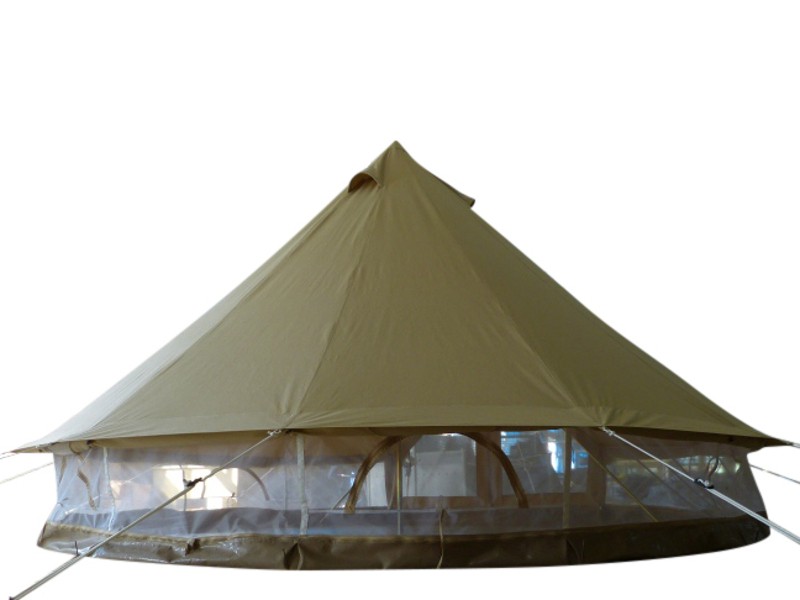

360 mesh wall bell tent Mesh Walls: 360° ProTechtion

Traditional camp pests like bugs and critters are posing a greater threat to campers with the increasing prevalence of vector borne illness like Zika, West Nile, and plague. Our ProTech series includes a mesh wall that zips on to the groundsheet and canopy, allowing you to roll up the canvas walls for maximum ventilation while keeping your tent sealed against pests. The mesh walls connect to the mesh door with extra sticky Velcro for a secure seal, offering a full 360° of mesh. When not in use the mesh wall can be rolled up and stowed neatly with the built-in hook and loop system on the inside of the canopy, or they can zip out and be removed completely. Mesh walls are also known as a double wall in the bell tent industry.

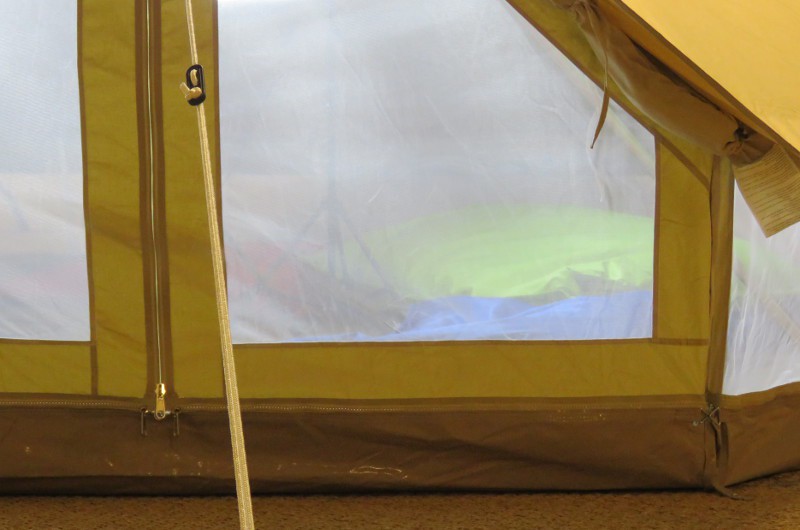

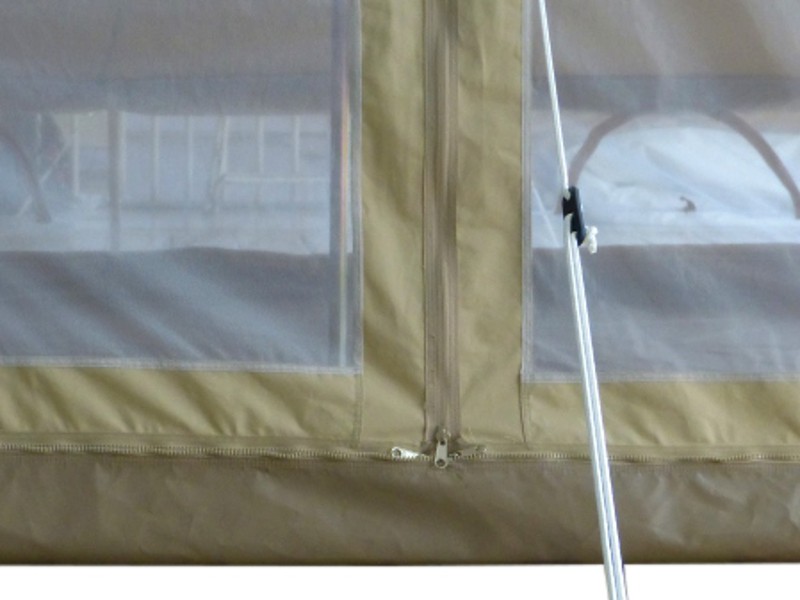

pro zipper ground sheet sibley canvas tent Roll Up Side Walls and Zipper Groundsheet: Pro Grade

Our ProTech groundsheets attach to the tent with a zipper and are made of are thick, thermally welded, rip-stop PVC (650 gr/m² or 19.17 oz/yd²). Completely water and vapor impenetrable, the ‘bathtub style’ floor rises 10cm (4 inches) high to keep you dry even in standing water. Using a heavy-duty size 10 zipper to attach the sidewall to the groundsheet, you can unzip the floor to roll up the canvas walls for maximum ventilation, or remove the groundsheet entirely for transport, storage, cleaning, or to enjoy the grass or sand beneath your feet. A tail gate style system of secure hooks and loops allows you to drop the bathtub wall near the door and peg it flat to prevent tripping and facilitate easy cleaning.

integrated mosquito mesh door tent Pro Integrated Mesh Doors

The Sibley 800 ProTech Double Door includes two sewn in no-see-um mesh doors in addition to the traditional canvas doors. The tent is equipped with loops on either side of the doors to neatly tie back the mesh doors when not in use.

durable guy lines canvas tent Pro Guy Lines and Tensioners

First time set up is a breeze with the Pro’s guy lines which are pre-attached to the tent and threaded through our tensioners. The Pro grade guy lines have been upgraded with corded nylon rope to make adjusting the tension on the line easier. Pro guy lines have are 5mm thick and have an additional UV resistant treatment. Plastic tensioners prevent edges from cutting into the guy lines and prolong the life of your tent.

steel stakes and pegs canvas tent Pro Stakes and Pegs

Specially designed for high wind or hard and rocky ground, our Pro stakes are made from the same high quality nickel plated steel our poles are made from. CanvasCamp exclusive Pro guy line stakes are 24cm (9.5 inches) angled and serrated to hold up to pounding into frozen or rocky round. A T shaped hook is welded securely to the stop to prevent guy lines from slipping off even in high wind. Pro groundsheet pegs are 50% thicker than standard pegs. The pegs for the floor are round to slip through the grommets on the groundsheet, and have a hook shaped top and hold the floor in place.

steel spring loaded tent pole Pro Spring Loaded Poles

The poles on the PRO series have been beefed up from the standard poles included with the Standard, Deluxe, and Ultimate Series. The extra burly center pole on the 800 is 50mm (2in) in diameter. Internal spring loaded wires guide the pole sections together for quick and easy assembly. The center pole has a welded lanyard ring which can be used to hang an inner tent or chandelier.

4 season cotton canvas bell tent Pro Canvas

Pro Canvas (360 gr/m² or 10.62 oz/yd²) is the best canvas for premium bell tents; but it’s not all about the weight. Our proprietary Pro treatment adds additional waterproofing to the natural water resistance of canvas, along with mold and UV resistance. Pro canvas is designed for long term use and wide range climates. A balance of breathability, waterproofing, and durability; Pro canvas is ideal for camping comfortably in all 4 seasons. Repairable and retreatable, a properly maintained Pro can last for years. Double stitched, flat-felled roof and side wall seams, seam gussets, and double-layer construction at all stress points create a bell tent that is as durable as it is beautiful.

100% Cotton canvas provides a natural waterproofing and breathability. Cotton fibers swell when damp, the tight weave prevents rain from penetrating and the surface tension of moisture drops on the outside combined with the steep angle of the canopy allows water to bead and run off. Moisture held in the air on the inside is still able to escape directly through the fabric, keeping internal humidity low and mitigating condensation.

Check out our FAQ for more information than you could ever need to know about cotton canvas and proper tent maintenance.

100% sustainable cotton canvas tent 100% Cotton Canvas

Our Sibley canvas is made exclusively from 100% cotton. Cotton is made from the seed hair of this hardy and drought tolerant plant. Sustainable, renewable, and one of the most biodegradable fabrics on earth. Our canvas is a soft, natural, earthy beige that glows inside and out with natural or artificial light. CanvasCamp is the only tent manufacture to carry the official Seal of Cotton®.

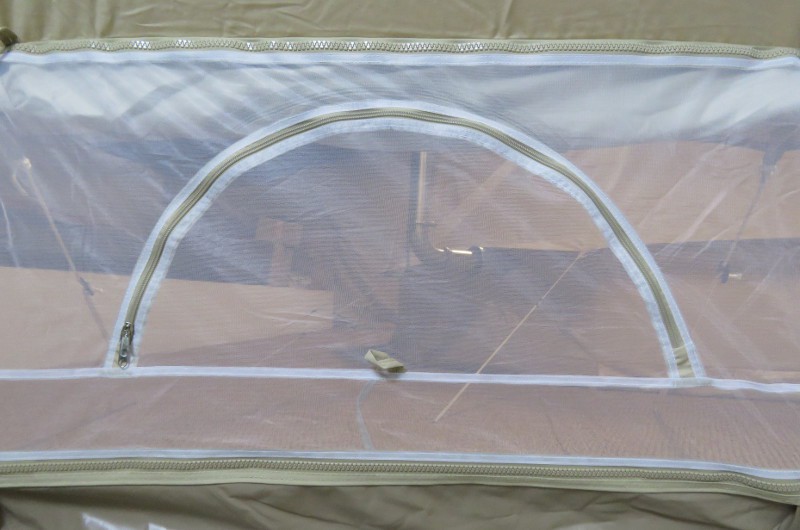

mesh window and ventilation canvas tent Windows and Vents

Every Sibley comes complete with windows and vents covered in no-seeum mesh to keep the bugs out while providing ventilation and airflow. Our half moon windows have zip up covers to allow you to customize your desired level of ventilation and privacy. Each window is equipped with loop fasteners to neatly hold the covers when the windows are unzipped. There are 4 windows on the Sibley 700.

canvas tent stove compatibility Stove Compatibility

All Breathe Bell Tents tents are easily adaptable for use with a wood burning tent stove. Proper stove placement is dependent on stove size, tent size, flu exit style, desired temperature, and the environment you intend to camp in. One size fits all, pre-installed stove jacks fail to provide customers with the level of customization necessary to achieve ideal stove placement and maximum utility. To ensure proper placement and ideal efficiency, Breathe Bell Tents offers modular stove jacks (sold separately) that can be easily installed in any cotton canvas bell tent in just a few minutes. Stove jacks are available in a variety of shapes and sizes so you can choose the jack that fits your tent and stove perfectly.

Canvas bell tents are not for use with open fire pits. Fire safety is the responsibility of the user. We encourage you to educate yourself and practice vigilant fire safety. Read our FAQ and blogs to learn more about fire safety. Do not hesitate to contact us if you have any questions or concerns at any time. Always check local fire restrictions prior to starting a fire as rules and regulations may change frequently throughout the year. CanvasCamp cannot be held liable for any damage or injury to persons or property resulting from the use or misuse of fire or flammable materials in or around our tents.


Floor Space 47,7 m² (513 ft²)

Diameter 800 (8m/26ft)

Height 400 cm

Door Height 200 cm

Max Capacity 20

Canvas TypePro (360 gr/m²)

Water Column 3500mm

Floor Material Pro (650 gr/m²)

Floor Attachment Zipper Mesh

Door Type Sewn In

Integrated Mesh Wall Yes

Peg Type Heavy Duty

Compatibility Inner Tent No

Sidewall Height 75cm
